Introduction
Arduino is an open-source electronics platform based on easy-to-use hardware and software. Arduino boards are able to read inputs (e.g., a finger on a button or a Twitter message) and can turn them into an output (e.g., activating a motor or publishing something online). You can tell your board what to do by sending a set of instructions to the microcontroller on the board.
All Arduino boards are completely open-source, empowering users to build them independently and eventually adapt them to their particular needs. The software, too, is open-source, and it is growing through the contributions of users worldwide.
Thanks to its simple and accessible user experience, Arduino has been used in thousands of different projects and applications. The Arduino software is easy-to-use for beginners, yet flexible enough for advanced users. It runs on Mac, Windows, and Linux. (Source: Arduino Guide)
The following course provides you with basic understandings of microcontrollers using Arduino as an application example. Furthermore, a short introduction to C programming is provided.
Embedded Systems
Embedded systems are computer systems in which a processor is embedded in a technical device. The processor takes over all monitoring, control, and operating functions. In general, the processor of an embedded system is a microcontroller.
In contrast to PC processors, the memory as well as inputs and outputs are usually integrated into a single chip. This is a processor with different peripheral interfaces.
Microcontrollers can be separated by the number of bits of the internal data bus (4-bit, 8-bit, 16-bit, 32-bit, etc.). This number describes the length of data which can be processed by the microcontroller. The biggest 8-bit representable number is 255, thus an 8-bit microcontroller can only add numbers less than or equal to 255 in one step. Adding higher numbers results in a longer calculation time as several commands are necessary.
Embedded systems are not always required to have a user interface. However, they can have I/O interfaces to handle analog or digital data.
Characteristics
- Application-specific customized hardware and software
- Compact devices which execute one or more specific tasks
- Can work without or with a reduced operating system (depending on complexity)
- Special real-time operating systems available
Systems are optimized for (examples)
- Code-size efficiency
- Optimized program execution
- Reduced system costs
- Reduced energy consumption
Difference between Universal Computers and Embedded Systems
| Universal Computer | Embedded System |
|---|---|
| Optimized for high processing power and graphics performance | Optimized system solutions where the microcontroller is often not visible |
| High compatibility with application software | Provides comprehensive functions. Available with sensor and actuator interfaces |
| Uses a variety of programs for individual applications | Is optimized for a specific application |
| Computers are interchangeable, software is the capital good | Is often designed as a real-time system |
| Mostly uses standardized Operating Systems, e.g., MacOS |
Software Development

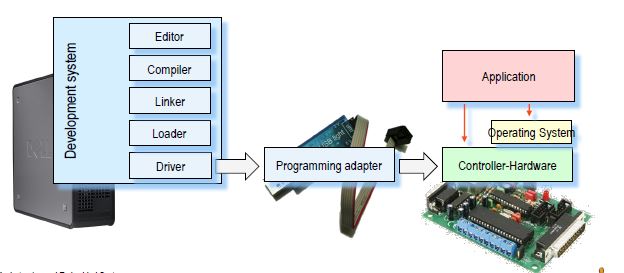

In conventional, so-called "self-hosted" computers (like your Windows PC), the development system and the target system are identical. The development system generally has a highly specialized and highly integrated interface that includes all the tools of software development (e.g., Visual Studio).
In the case of embedded systems, the operating system of the target can offer only basic functionalities like, for example, loader, debugger, or scheduler. Therefore, the host system is different from the target system, which makes configuration and debugging more complicated than for "self-hosted" computers. Cross development is necessary.
In this case, the programming and compiling are done using development tools on the host computer. Furthermore, a connection to the target system is established using a communication interface (e.g., ISP or Ethernet interfaces).
Programming in C
Variables
A variable is a name given to a storage area that programs can manipulate. Each variable in C has a specific type, which determines the size and layout of the variable's memory; the range of values that can be stored within that memory; and the set of operations that can be applied to the variable.
Standard Data Types for C Programming (Typical Values)
Integer Types
| Datatype | Size | Range |
|---|---|---|
| signed char | 1 Byte | -128 to 127 |
| unsigned char | 1 Byte | 0 to 255 |
| unsigned short | 2 Bytes | 0 to 65535 |
| signed short | 2 Bytes | -32768 to 32767 |
| unsigned int | 4 Bytes | 0 to (2^{32}-1) |
| signed int | 4 Bytes | (-2^{31}) to (2^{31}-1) |
| unsigned long | 8 Bytes | 0 to (2^{64}-1) |
| signed long | 8 Bytes | (-2^{63}) to (2^{63}-1) |
Floating Point Types
| Datatype | Size | Range | Precision |
|---|---|---|---|
| float | 4 Bytes | 1.2E-38 to 3.4E+38 | 6 decimal places |
| double | 8 Bytes | 2.3E-308 to 1.7E+308 | 15 decimal places |
Void Type
The void type specifies that no value is available. It is used in three kinds of situations:
- A function with no return value has the return type as void.
- A function with no parameter can accept a void.
- A pointer of type
void *represents the address of an object, but not its type.
Variables can be defined like this (examples):
int i, j, k;char x = 'x';
Operators
The C language has different types of operators:
- Arithmetic Operators
- Relational Operators
- Logical Operators
- Bitwise Operators
- Assignment Operators, e.g.,
= - Misc Operators, e.g.,
sizeof
Arithmetic Operators
| Operator | Description | Example |
|---|---|---|
+ |
Adding | A + B = 30 |
- |
Subtracting | A - B = -10 |
* |
Multiplication | A * B = 200 |
/ |
Division | B / A = 2 |
% |
Modulus | B % A = 0 |
++ |
Increment value by one | A++ = 11 |
-- |
Decrement value by one | A-- = 9 |
Relational Operators
| Comparison | Operators |
|---|---|
| Comparison | <, >, <=, >= |
| Equality | == |
| Inequality | != |
Logical Operators
| Operator | Symbol |
|---|---|
| And | && |
| Or | || |
| Not | ! |
Bitwise Operators
Bitwise operators work on bits and perform bit-by-bit operations.
| Operator | Symbol |
|---|---|
| Binary And | & |
| Binary Or | | |
| Binary XOR | ^ |
| Binary Left Shift | << |
| Binary Right Shift | >> |
Decision Making
Decision-making structures require that the programmer specifies one or more conditions to be evaluated or tested by the program, along with a statement or statements to be executed if the condition is determined to be true, and optionally, other statements to be executed if the condition is determined to be false.
- if statement: Consists of a boolean expression followed by one or more statements.
- if...else statement: An if statement can be followed by an optional else statement, which executes when the Boolean expression is false.
- switch statement: A switch statement allows a variable to be tested for equality against a list of values.
Loops
Loops are used if a block of code must be executed several times. It is possible to use one or more loops inside any other loop.
- while loop: Repeats a statement or group of statements while a given condition is true. It tests the condition before executing the loop body.
- for loop: Executes a sequence of statements multiple times and abbreviates the code that manages the loop variable.
- do...while loop: Similar to a while statement, except that it tests the condition at the end of the loop body.
Loop control statements change execution from its normal sequence.
- break statement: Terminates the loop or switch statement and transfers execution to the statement immediately following the loop or switch.
- continue statement: Causes the loop to skip the remainder of its body and immediately retest its condition prior to reiterating.
- goto statement: Transfers control to the labeled statement.
Functions
A function is a group of statements that together perform a task. Every C program has at least one function, which is main(), and all the most trivial programs can define additional functions.
The general form of a function definition in C programming language is as follows:
return_type function_name(parameter list)
{
body of the function
}The return type specifies the data type of the value which is returned by the function, for example int. If no value is returned, the return type is void. The function name is the actual name of the function. The parameters act like a placeholder to pass values to the function. The function body contains the statements which define what the function does.
Example
/* function returning the max between two numbers */
int max(int num1, int num2)
{
/* local variable declaration */
int result;
if (num1 > num2)
result = num1;
else
result = num2;
return result;
}To use the function, it must be called in the program. Therefore, the required parameters and the function name must be passed. If the function returns a value it must be stored in a variable.
/* calling a function to get max value */
ret = max(a, b);Note: Variables inside a function or a block are called local variables. Variables outside of all functions are called global variables. Variables in the definition of function parameters are called formal parameters.
Arrays
Arrays can store a fixed-size sequential collection of elements of the same type.
- Declaration:
type arrayName[arraySize];example:double size[3]; - Initialization:
double size[3] = {10.0, 2.0, 3.4};
In this case, the number of values between braces {} cannot be larger than the number of elements that we declare for the array between square brackets [].
If the array should just be big enough to hold the initialization, an empty square bracket is used: double size[] = {10.0, 2.0, 3.4, 9.4};
An element is accessed by indexing the array name. This is done by placing the index of the element within square brackets after the name of the array: timSize = size[2];. This will take the third element from the array and assign it to the variable "timSize".
Pointers
A pointer is a variable whose value is the address of another variable, i.e., direct address of the memory location. It is used for example for dynamic memory allocation.
Strings
Strings are actually one-dimensional arrays of characters terminated by a null character \0. Thus a null-terminated string contains the characters that comprise the string followed by a null.
Example: char word[] = "Hello";
Structures
Structures is a user-defined data type available in C that allows combining data items of different kinds. For example, it might be helpful to track different information about a person like name, age, and city.
Structures can be defined like this (structure tag is optional):
struct [structure tag]
{
member definition;
member definition;
...
member definition;
} [one or more struct variables];Example
struct person
{
char name[50];
int age;
char city[100];
};/* Initialization */
struct person tim; /* Declare tim of type person */
/* Access member of structure */
timAge = tim.age;To access any member of a structure, we use the member access operator (.).
Arduino Programming
An Arduino program, known as a "Sketch," consists of the setup function for one-time initialization during startup and the loop function for the endless loop.

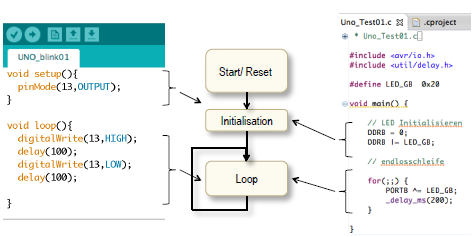

Difference between Arduino and Conventional C
The Arduino has a minimal Operating System. The program consists of an initialization part and an endless loop. As it can be seen in examples, the Arduino development platform encapsulates many cryptic functions and the processor code. Additionally, the Arduino code is significantly larger in size than code written in conventional C.
Arduino vs. Microcontroller Programming
Microcontrollers can be programmed in different languages. A very hardware-related, low-level language is Assembler. It is used to create code for a specific device or a particular computer architecture and is typically selected for time or memory critical tasks.
In contrast to Assembler, Arduino has a minimal Operating System and library functions to interact with the hardware. Thus, it is portable across multiple systems (the generated code can be used for different microcontrollers). Programming of μC-Register is done with the help of the library functions. This leaves the programmer free to take care of their individual program.
Arduino Basic Commands
Read and Write
- To set up the PIN in (INPUT, OUTPUT) mode:
pinMode(PIN, OUTPUT); - To write digital values:
digitalWrite(PIN, value); - To read digital values:
value = digitalRead(PIN); - To write analog values:
analogWrite(PIN, value); - To read analog values:
value = analogRead(PIN);
Useful Arduino Commands
- Delay of the program execution in milliseconds:
delay(1000); - Start of serial communication:
Serial.begin(9600); - Send data via serial interface:
Serial.println(analogRead(1));
Create Own Functions (Example)
void blink(int thePin, int time)
{
digitalWrite(thePin, HIGH);
delay(time);
digitalWrite(thePin, LOW);
delay(time);
}
// Calling the function
blink(3, 1000);Switch-Case
Used to test if a variable is in a specific condition.
switch (myVariable)
{
case 1:
command1;
break;
case 2:
command2;
break;
default:
command3;
break;
}Note: For more information, please refer to the Arduino page.
Note: For most steps, Arduino examples are available in the Arduino IDE. Use these examples!
