Siemens PLC Control of Conveyor Band
In this session, a Siemens PLC will be used along with a retroreflective sensor to determine the shape of a workpiece.
Please prepare all the preparation sections before the actual lab session. This is obligatory for attending and will save you time during the session. Preparation may include drawing diagrams, answering questions, or reading through the basics.
Learning Outcome:
Learning Outcome
Introduction
In this session you will program a Siemens PLC.
- You will get familiar with Siemens PLCs
- You will get familiar with the TIA Portal environment
Requirements
What you need
Software
All software on this list are pre-installed on the lab PC.
- TIA Portal V15 or newer
Hardware

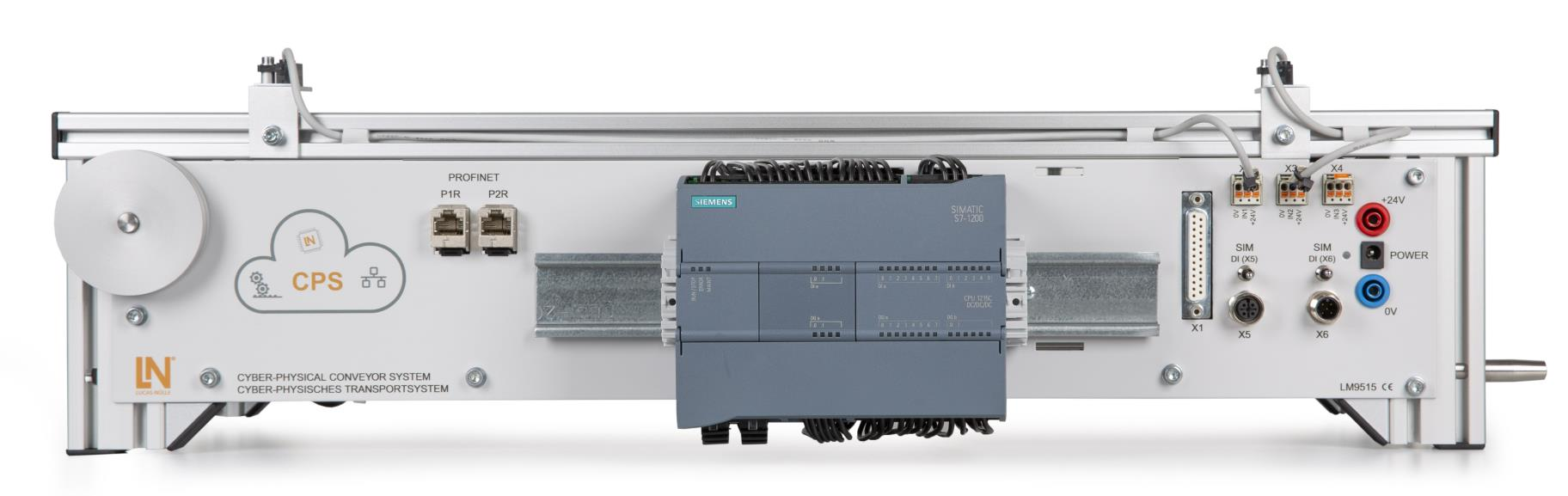

Conveyor System
The conveyor system consists of the following:
- Siemens S7 1200 PLC with a signal board installed
- DC motor (labeled
M1) - Two magnetic field sensors (labeled
B1andB2) - A PCB board that (re) wires the I/O of the PLC
- A 20-pin connector to connect the PLC IO to additional sensors and actuators.
- Depending on the revision, the board provides four or five sensor inputs (
X2,X3,X4,X5and an optionalX6) - In addition there are one or two simulation switches (
SIM DI) for the sensorsX5andX6. The simulation switches simulate a sensor input, even though no sensor is connected to the sensor connector on the conveyor belt. - The PLC has an analog input module, that is wired in a way to measure the PLC's power consumption and input voltage.
- A Quick-Chart (in german), showing the conveyor's IO is available.
Make yourself familiar with the conveyor belt and identify each of the inputs
Preparation
Task Description

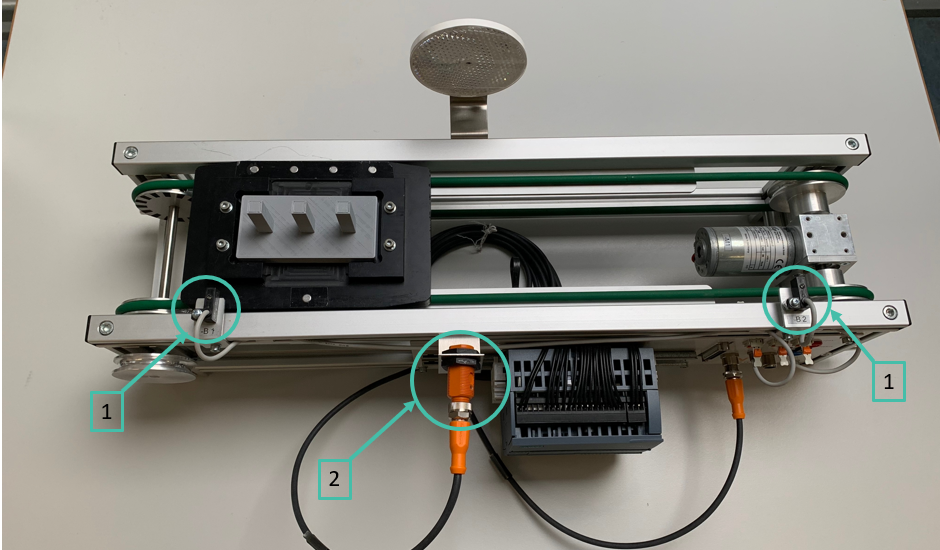

The conveyor band shown below is to be controlled by a Siemens PLC. Inductive sensors (1) are mounted on both sides of the conveyor to detect if a workpiece carrier is there.
A retroreflective sensor (2) is used to count how many pillars the workpiece has.

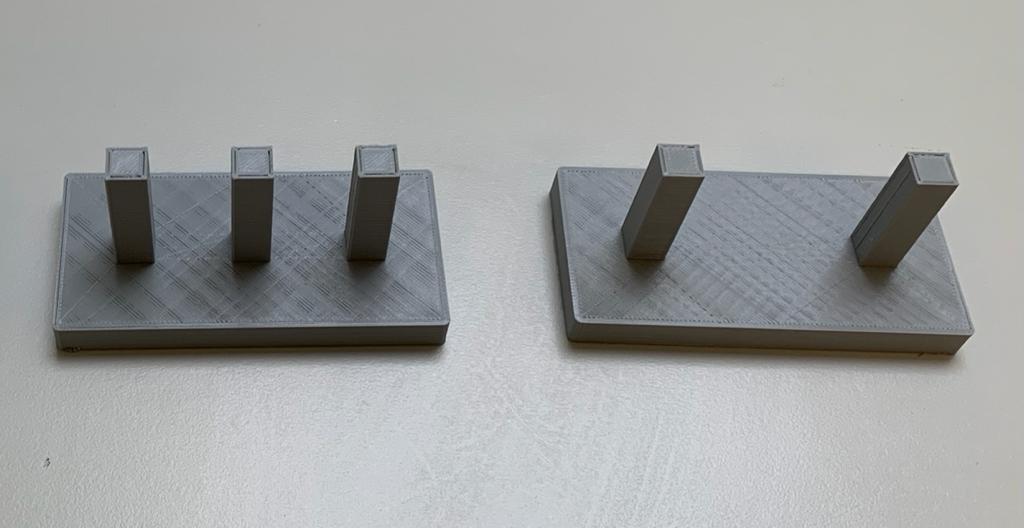

Different workpieces will be provided with different number of pillars.
The assignment is as follows: first, the conveyor should be waiting in an idle state. If the sensor at the beginning of the conveyor (i.e., on the left side) detects a workpiece, the conveyor's motor should be turned on and the workpiece should be transported to the right side. While the workpiece passes the retroreflective sensor in the middle, the number of pillars on the piece should be counted and saved in a variable of type integer.
Preparation before the session
Draw a state machine diagram that describes the software to fulfill the above assignment.
Read through and prepare additional-plc and additional-tia_basicbefore the lab session.
Task
Follow additional-tia_setup to create and set up a project in TIA Portal.
Refere to additional-tia_basic for help in creating function blocks and other topics.
⚠️ For this lab you need to work with TIA-Portal V16!!!!! Both Versions are installed on the Lab PC, so pay attention!
Tia Portal Project Setup
Create the necessary variables for all sensors and map them to their suitable addresses. The sensors and actors are wired to the following addresses.
Function Block
Create a function block called FB_ConveyorControl and implement your state machine diagram from your preparation. Choose SCL as the programming language.

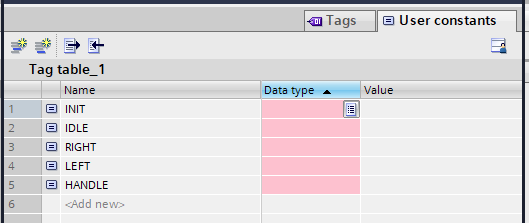

The Tia Portal environment does not support enumerations as CodeSys does. To generate Enumerations in TIA Portal (V16), create a new Tag List. Switch to the User Constants, assign the names of your chosen states. Think of a well chosen Datatype for the numbered representation of your enumeration.
Which Datatype do you need for the Enum? Do you need the datatype to be BOOL, FLOAT, INT or USINT?
Main [OB1]
Add one instance of FB_ConveyorControl to your Main program (drag & drop).
create a watch-table to monitor your variables during the code.
Connect the IO to the function-block. Test if the program runs correctly.
download the program to your PLC and set the PLC to RUN-mode.
Main [OB1] is written in FBD, but the function block should be written in SCL.
